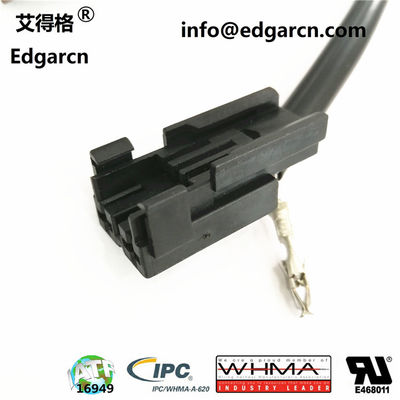

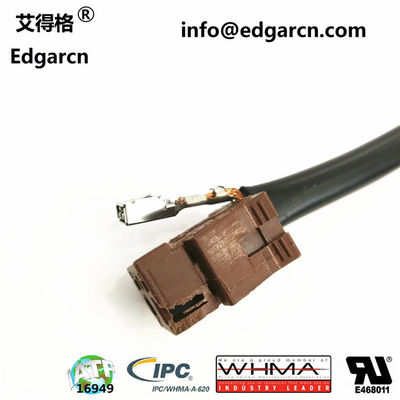

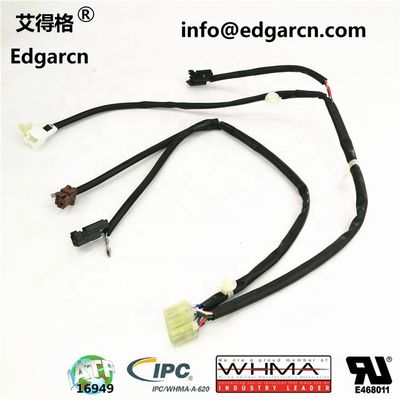

Power Seat Wiring Harness with J1939 Male To J1962 Female 6pin Deutsch Connector IP68 Waterproof for Heavy-Duty Vehicles
Подробная информация о продукте:
| Место происхождения: | Гуандун, Китай |
| Фирменное наименование: | Edgarcn & EdgarWireHarness |
| Сертификация: | IATF16949 TS16949 UL |
| Номер модели: | Силовое сиденье |
Оплата и доставка Условия:
| Количество мин заказа: | 10000 |
|---|---|
| Цена: | $8.88-10 |
|
Подробная информация |
|||
| Тип разъема: | Deutsch J1939 HD-16-9-1939S-P080 HD-10-9-1939P-P080 | Длина кабеля: | индивидуально |
|---|---|---|---|
| Варианты цвета: | КРАСНЫЙ, ЧЕРНЫЙ, ГОЛУБОЙ, ЗЕЛЕНЫЙ | Рабочая температура: | -40 ℃ до +125 ℃ |
| Вибрационное сопротивление: | 20 г при 10-2000 Гц в течение 2 часов | Водонепроницаемый рейтинг: | IP68 |
| Глубина погружения: | 1,2 метра в течение 24 часов | Тип терминала: | 1060-16-0122 |
| Тип провода: | UL 1007 18#, UL 1007 16# | Сохранение контактов: | 20 фунтов |
| Огромить растяжение: | > 20 фунтов (18#),> 25 фунтов (16#) | Модель неудачи: | Повреждение провода, натулка сломана |
| Материал разъема: | Термопластичный, силиконовый резиновый герметичный | Подсчет штифтов: | 9 PIN (J1939), 6 PIN -код (J1962) |
| Серия разъемов: | Серия EDG-HD | ||
| Выделить: | J1939 Male To J1962 Female 6pin Deutsch Power Seat Wiring Harness,IP68 Waterproof Automotive Wiring Harness,Operating Temperature -40℃ to +125℃ Vehicle Cable |
||
Характер продукции
Power Seat Wiring Harness Truck Vehicle Cable
J1939 Male To J1962 Female 6pin Deutsch Harness for Truck
Model Numbers: D-16-9-1939S-P080, HD-10-9-1939P-P080
Product Description
The EDG-HD series is an environmentally silicone rubber sealed, thermoplastic cylindrical connector, designed for faster, easier, trouble-free assembly in heavy-duty industries including trucks, buses, cross-country vehicles, cranes, and forklifts. When mated, the contacts are protected from water, dust, lubricating oils, fuel, road salt, grease, mud, and other contaminants.
Product Specifications
- Operating temperature range: -40℃ to +125℃ with no cracking, chipping, or leaking after 20 test cycles
- Withstands sinusoidal vibration levels of 20 G's at 10 to 2000Hz in three mutually perpendicular planes for 2 hours without damage
- IP68 rating - waterproof and withstands immersion under 1.2 meters of water for 24 hours
Force Testing Results
EDG-HD10-9-1939P-P080
| Terminal Type | Wire Type | Contact Retention | Ref Crimp Tensile | Failure Model |
|---|---|---|---|---|
| 1060-16-0122 | UL 1007 18# | 20 LBS | >20 LBS | Wire damage |
| 1060-16-0122 | UL 1007 16# | 20 LBS | >25 LBS | Grommet broken |
EDG-HD16-9-1939S-P080
| Terminal Type | Wire Type | Contact Retention | Ref Crimp Tensile | Failure Model |
|---|---|---|---|---|
| 1060-16-0122 | UL 1007 18# | 20 LBS | >20 LBS | Wire damage |
| 1060-16-0122 | UL 1007 16# | 20 LBS | >25 LBS | Grommet broken |
Packaging and Shipping
Packaging details can be customized according to client specifications.
Standard Lead Times
| Quantity (PCS) | 1 - 1000 | 1001 - 5000 | >5000 | Mold/Tooling |
|---|---|---|---|---|
| Est. Time (Days) | 20 | 25 | To be negotiated | 30 days more |
International shipping available via DHL, UPS, FedEx, TNT, ARAMEX, and EMS. Customers may choose air, sea, or other shipping methods. Payment for samples/mass products required before delivery (amounts above $5000 USD negotiable).
Frequently Asked Questions
Q: Can you help with design?
A: Yes, we are an ODM/OEM company specializing in wire harness and cable assembly since 1999.
Q: When will you start to help design?
A: We provide initial sketches for discussion. After order confirmation, we create detailed drawings for client approval.
Q: What if quality issues occur?
A: Our quality team responds within 72 hours to resolve any issues, as we prioritize long-term customer relationships.
Q: Do you have standard products to reduce lead time and tooling costs?
A: Yes, we maintain over 1000 molds and 5000+ products developed through 20+ years of wire harness specialization.
Хотите узнать больше подробностей об этом продукте
